AWS Challenge Lab – Migrating a MariaDB Database to Amazon RDS for the Café Application

Welcome to this detailed, hands-on manual for the AWS Academy Cloud Architecting Challenge Lab: Migrating a Database to Amazon RDS. This guide is based on the official lab instructions and the excellent walkthrough video:
Challenge Lab: Migrating a Database to Amazon RDS (YouTube Walkthrough)

This lab teaches you how to migrate a MariaDB database from a self-managed instance on EC2 to a fully managed Amazon RDS service. You’ll export data, import it into RDS, secure connectivity, and update a PHP web application to use the new database—all while decoupling compute and storage for better manageability, scalability, and cost efficiency.

Lab Duration: ~80 minutes
Key Services: Amazon RDS (MariaDB), EC2, Secrets Manager, VPC Security Groups, Session Manager
Objectives:

Create a managed RDS MariaDB instance
Export data using mysqldump
Securely connect EC2 to RDS
Import data and switch the application
Stop the local database for cleanup

Let’s dive in with every minor step explained.

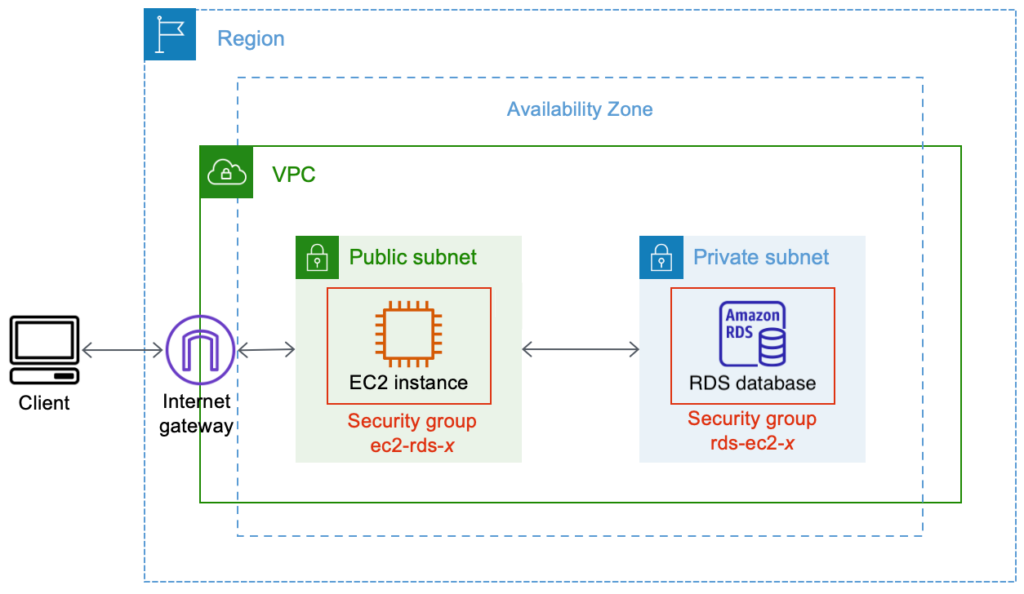

Final architecture: EC2 web server connected to RDS database

Phase 1: Creating the Amazon RDS Instance

Step 1: Navigate to RDS Console

Open the AWS Management Console.
Search for RDS and open the Amazon RDS console.
Ensure you’re in the correct Region (usually us-east-1 for the lab).

Step 2: Create Database with Exact Specifications

Click Create database.

Configure exactly as follows (these are graded!):

Engine options → Engine type: MariaDB
Templates: Dev/Test

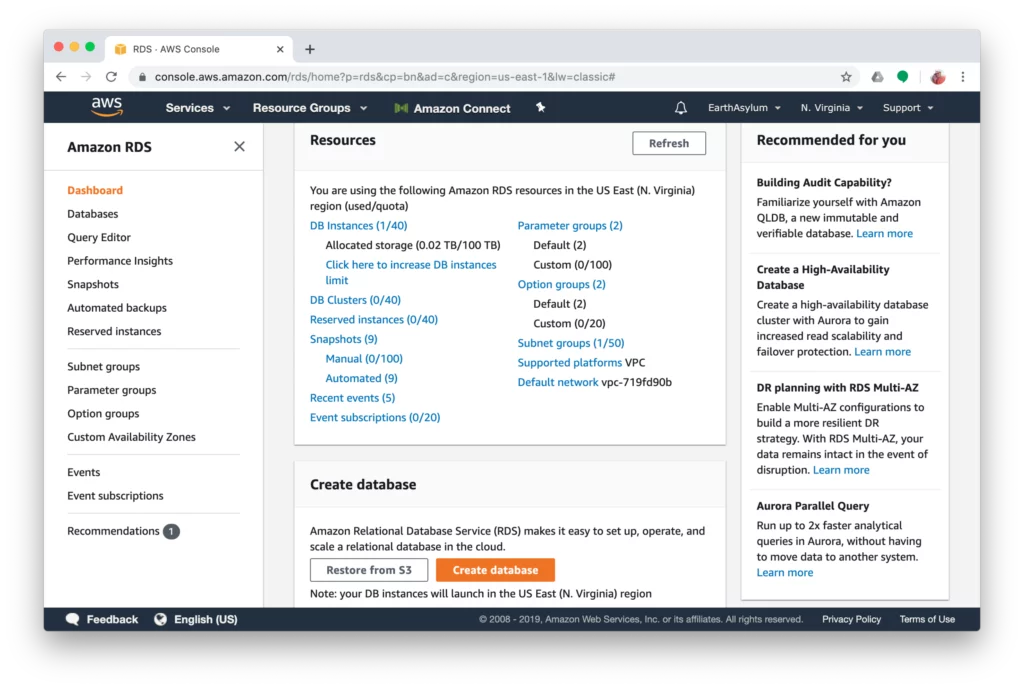

RDS creation screens – select MariaDB and Dev/Test template

Settings:

DB instance identifier: CafeDatabase
Master username: admin
Master password: Caf3DbPassw0rd! (copy-paste exactly!)
Confirm password: Same

Instance configuration:

Burstable classes → db.t3.micro

Storage:

Storage type: General Purpose SSD (gp2)
Allocated storage: 20 GiB

Availability & durability: Do not create a standby instance

Connectivity:

VPC: Lab VPC
DB subnet group: lab-db-subnet-group
Public access: No
VPC security group: Select dbSG (remove default)
Availability Zone: First one ending in a (e.g., us-east-1a)
Database port: 3306 (default)

Monitoring: Clear Enable Enhanced Monitoring (not supported in lab)

Click Create database.
You don’t need to wait for “Available” status — proceed immediately.

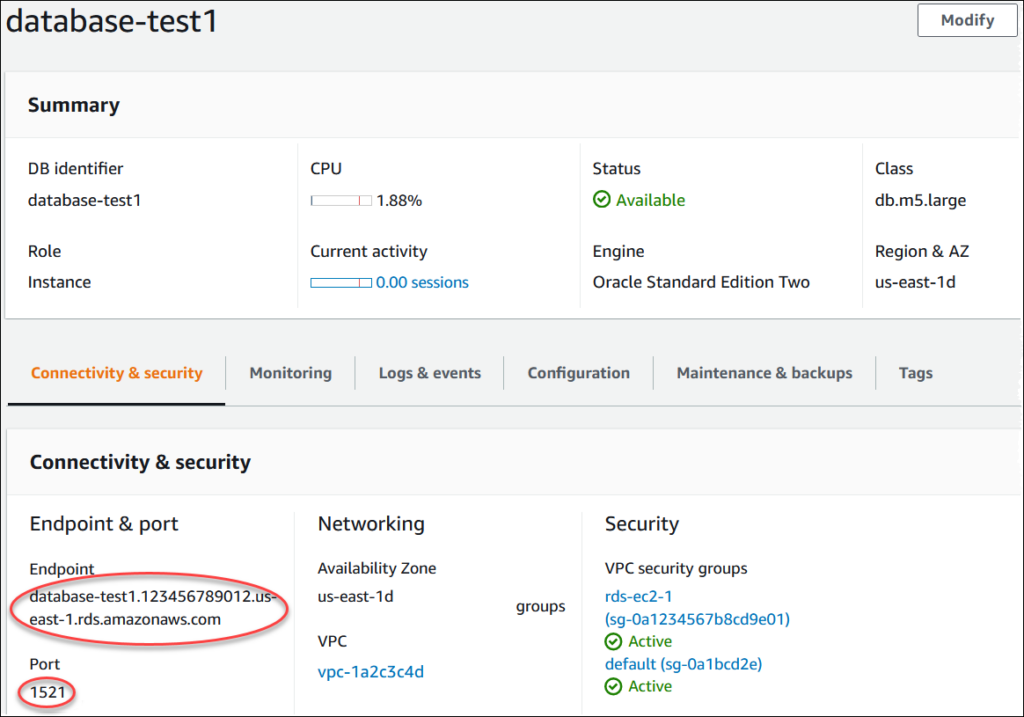

Note the RDS endpoint after creation – you’ll need it soon

Phase 2: Analyzing the Existing Café Application & Exporting Data

Step 1: Test the Current Café Website

Go to EC2 console → Instances.
Find the instance named CafeServer.
Copy its Public IPv4 address.
Open browser: http://<public-ip>/cafe
Navigate to Menu → Increase quantity of an item → Submit Order.
Go to Order History — you should see existing orders.

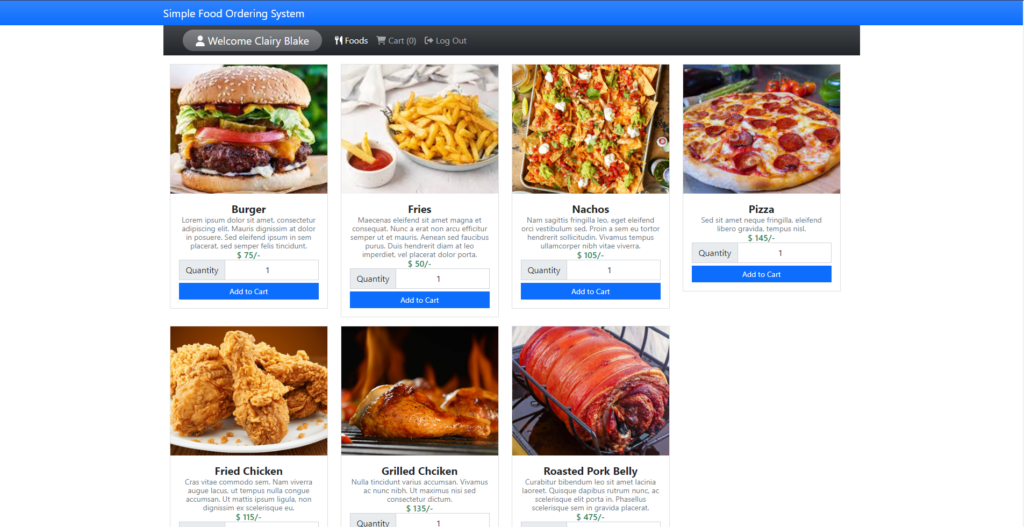

Café online ordering menu – place a test order

Step 2: Connect to EC2 via Session Manager

In EC2 console, select CafeServer instance.
Click Connect → Session Manager tab → Connect.

A new tab opens with a terminal as ec2-user.

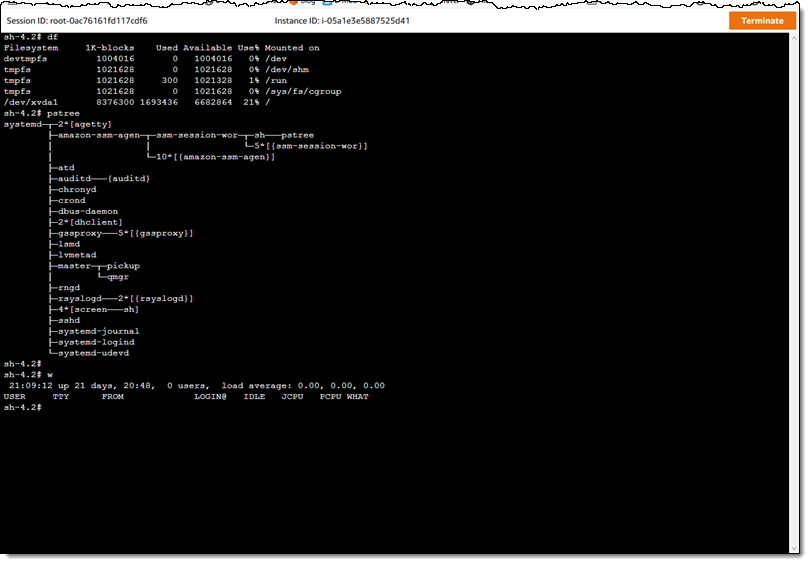

Session Manager terminal connection

Step 3: Check Local MariaDB and Export Data

Run these commands:

service mariadb status
mysql --version

Both should confirm MariaDB is running.

Get the local DB password:

Open Secrets Manager console.
List secrets → Click /cafe/dbPassword → Retrieve secret value → Copy the password.

Secrets Manager – retrieve dbPassword

Connect to local DB:

mysql -u root -p

Paste the password.

Explore data:

show databases;
use cafe_db;
show tables;
select * from `order`;
select * from `order_item`;
exit;

Export the database:

mysqldump --databases cafe_db -u root -p > CafeDbDump.sql

Paste password when prompted.

Verify:

ls
cat CafeDbDump.sql | head   # View first lines

mysqldump in action

Phase 3: Connecting to RDS and Importing Data

Step 1: RDS Instance Questions (for grading)

Where is it running? Private subnet (in Lab VPC)
Public IP? No
Subnet tag? Check subnet details (usually private)
Security group rules? Initially minimal

Step 2: Enable Connectivity from EC2 to RDS

Go to RDS console → Click CafeDatabase → Copy the Endpoint (e.g., cafedatabase.xxxx.us-east-1.rds.amazonaws.com).
In Connectivity & security → Security group (dbSG) → Edit inbound rules.
Add rule:

Type: MySQL/Aurora (3306)
Source: Security group ID of the EC2 instance (search “sg-” to find CafeServer’s group)

Add inbound rule allowing EC2 security group on port 3306

Test connectivity:

mysql -u admin -p --host <rds-endpoint>

Enter RDS password: Caf3DbPassw0rd!

Run:

show databases;

You should see default DBs but no cafe_db yet.

exit;

Step 3: Import the Dump File

mysql -u admin -p --host <rds-endpoint> < CafeDbDump.sql

Enter RDS password.

Reconnect and verify:

mysql -u admin -p --host <rds-endpoint>

Then:

show databases;
use cafe_db;
show tables;
select * from `order`;   # Should show ~24+ orders
exit;

Importing the SQL dump into RDS

Phase 4: Switch Application to RDS and Clean Up

Step 1: Update Secrets Manager Values

The app uses Secrets Manager for DB config.

Update these secrets:

/cafe/dbUrl → Set to the RDS endpoint
/cafe/dbUser → admin
/cafe/dbPassword → Caf3DbPassw0rd!

Leave others unchanged (currency, dbName=cafe_db, timeZone, showServerInfo).

Update dbUrl, dbUser, dbPassword in Secrets Manager

Step 2: Stop Local Database and Test

In Session Manager terminal:

sudo service mariadb stop

Refresh the café website: http://<public-ip>/cafe/menu.php

Place a new order → Should succeed
Check Order History → New order appears alongside migrated ones

Everything now runs on RDS!

Key Learnings & SAA-C03 Exam Tips

RDS benefits: Automated backups, patching, scalability — no admin overhead
Migration pattern: mysqldump → import is standard for homogeneous migrations
Security best practice: Use security groups (not IP ranges) for VPC-internal access
Application integration: Secrets Manager + IAM role keeps credentials secure and rotatable
Cost optimization: After migration, downsize EC2 (smaller instance, less EBS)

This lab reinforces the Well-Architected Framework pillars: Operational Excellence, Security, Reliability, and Cost Optimization.

If you’re following the video, pause after each section and execute — hands-on is key!
